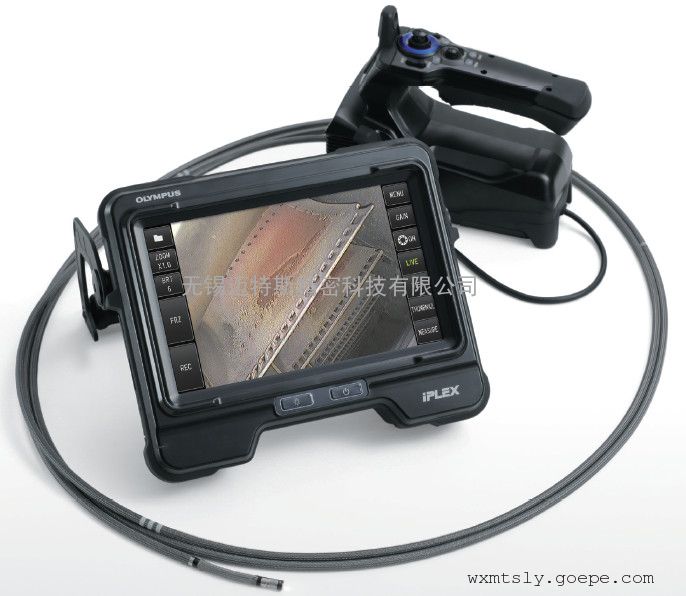

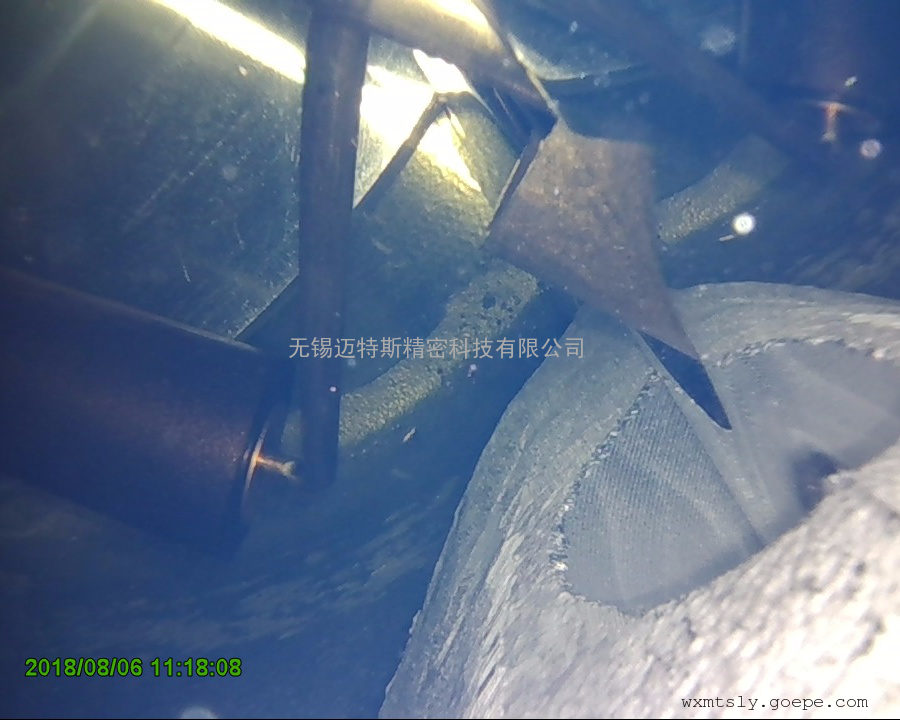

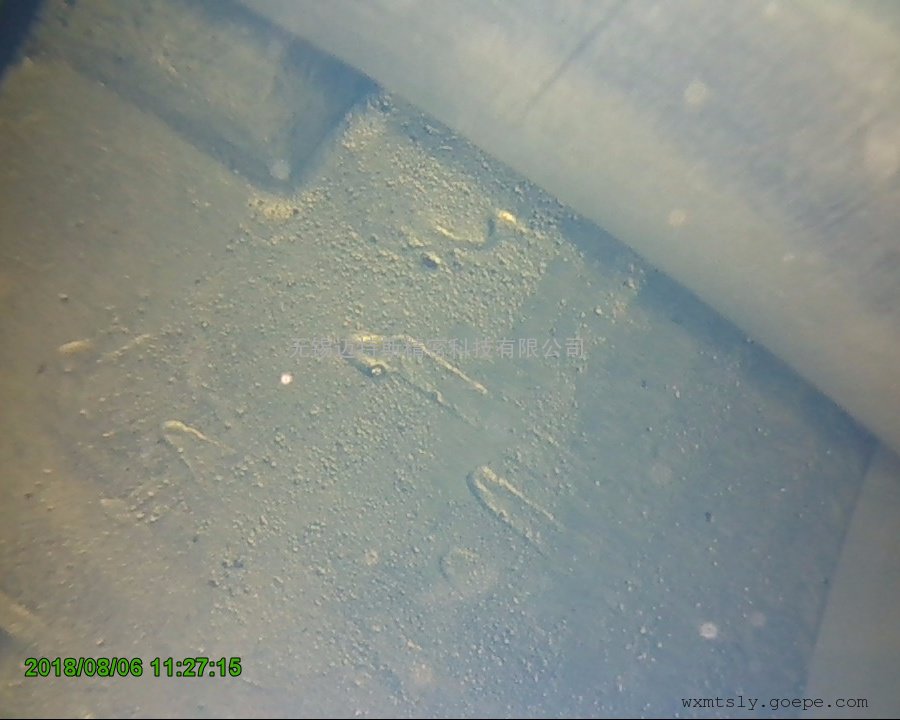

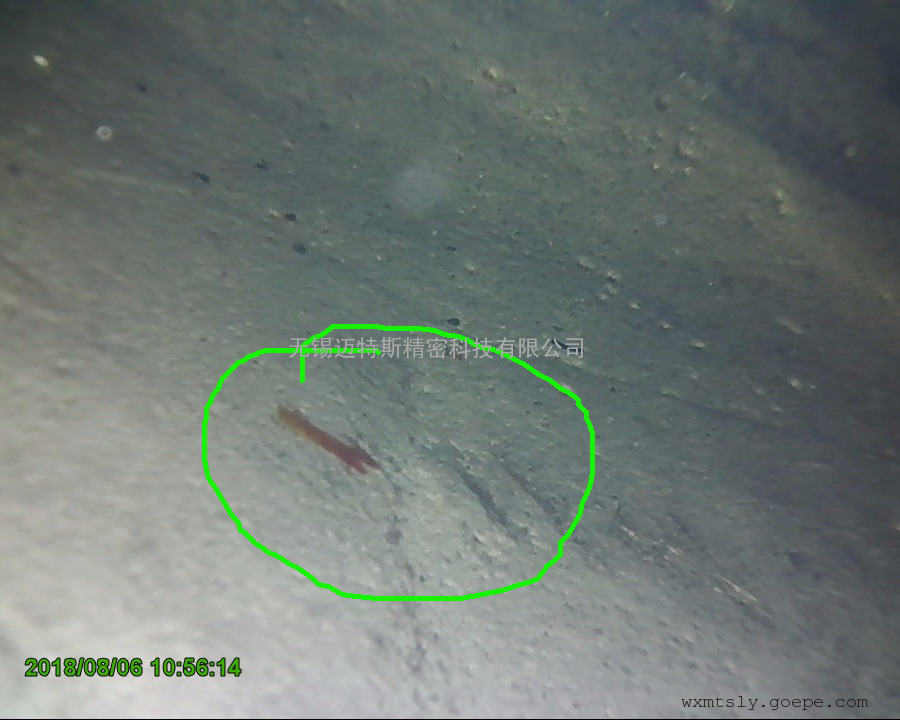

Olympus IPLEX G Lite工业视频内窥镜IV9620GL
Durable

Small but tough, the IPLEX G Lite videoscope is designed to meet IP65 standards and built to pass U.S. Department of Defense testing (MIL-STD) for protection against:

• 1.2 m (4 ft) drops
• Vibration
• Blowing rain
• Dust
• High humidity
• Salt fog
• Freezing rain
• Electromagnetic environments
• Explosive atmospheres
•

  Olympus IPLEX G Lite工业视频内窥镜IV9620GL

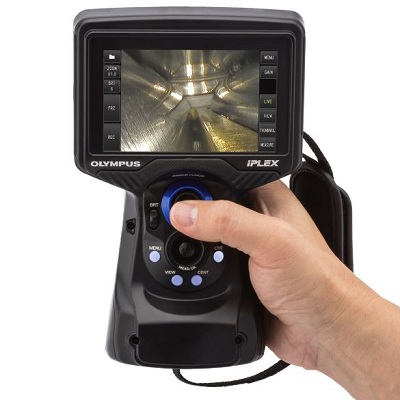

  Choose the right scope for the job

  Choose from scopes measuring 2 m and 3.5 m long (4 mm/6 mm) and 10 m long  (6 mm only)


  Olympus IPLEX G Lite工业视频内窥镜IV9620GL

  Made to travel

  The videoscope and its accessories fit neatly in a lightweight travel case small enough to fit under an airplane seat.

  Case dimension (W x H x D)
  455 mm (18 in.) x 330 mm (13 in.) x 185 mm (7.3 in.)





  Olympus IPLEX G Lite工业视频内窥镜IV9620GL

  Other features

  Durable, 4-layer construction insertion tube Daylight view monitor for outdoor use
  For more details, please contact us

  IPLEX G Lite工业视频内窥镜IV9620GL
  BASIC FUNCTIONS

  Model No.		IV9420GL	IV9435GL	IV9620GL	IV9635GL	IV96100GL
  Insertion tube	Scope diameter	Φ4.0 mm		Φ6.0 mm
  	Scope length	2.0 m	3.5 m	2.0 m	3.5 m	10.0 m
  	Exterior	High-durability tungsten braid
  	Tube flexibility	Uniform stiffness		TaperedFlex tube with flexibility gradually  increasing toward the distal end
  	Temperature sensor	2-stage indicator for high temperature warning
  Articulation section	Articulation angle  up/down/right/left	130°		150°		110°
  	Articulation operation	TrueFeel scope tip articulation with electronic articulation
  Approx. system weight (with battery)		1.15 kg (2.5 lbs)	1.21 kg (2.6 lbs)	1.23 kg (2.7 lbs)	1.34 kg (2.9 lbs)	1.83 kg (4.0 lbs)
  Dimensions (W x D x H)		128 mm × 203 mm × 110 mm (5 in. × 8 in. × 4.3 in.)
  Dimensions of carrying case		455 mm × 330 mm × 185 mm (18 in. × 13 in. × 7.2 in.) (carry-on size on most airlines)
  Illumination		LED illumination  ※Extend the life of the battery by using the ECO mode lighting control
  Display		4.3-inch WVGA LCD with capacity-type touch panel
  Power supply	AC power	100 V to 240 V, 50/60 Hz (with supplied AC adaptor)
  	Battery	7.4 V nominal, approx. (with supplied battery)  Battery operation time:approx. 90minutes
  Video output standard	HDMI	Type C  HDMI 1.4
  Head set (mic in/ audio out)		Φ3.5 mm mini plug CTIA
  Live image streaming		Attach the recommended USB wireless LAN adaptor to the type A USB connector

  SOFTWARE FEATURES

  Image features	5X digital zoom, 16-step brightness control
  Gain control	4-step adjustable gain control （Manual, Auto, Wider1, Wider2）
  Dynamic noise rediction	Available
  Display text options	30-character title display
  Note text options	30-character title display、mark, free drawing
  Image display functions	Live image can be inverted to right and left, inverted to up and down, and rotated 180 degrees

  RECORDING MANAGEMENT FUNCTIONS

  Recording media		SDHC  (*with supplied SDHC）
  		micro SDHC （using the recommended parts） *Set the constant video function to ON
  Internal memory		Available (only the still images are recorded)
  Overlay		Selectable 30-character title with date, time, optical tip, OLYMPUS logo, title, and system setting
  Thumbnail image display		Recorded images can be displayed as thumbnails
  Still image recording	Resolution	H768 x V576（Pixel）
  	Recording format	Compressed JPEG format
  Video recording	Resolution	H768 x V576（Pixel）
  	Recording format	MPEG 4 AVC/H.264  comforms to baseline profile.  Windows Media Player 12 compatible
  	Frame rate	60 fps /30 fps

  MEASUREMENT FUNCTIONS

  Scalar measurement	Using reference length to measure object length

  STEREO MEASUREMENT FUNCTIONS — UPGRADE FOR OPTIONAL FUNCTIONS

  Distance	Distance between two points
  Point-to-line	Perpendicular distance between a point and a user-defined line
  Depth	Orthogonal depth/height distance between a point and a user-defined plane
  Area/Lines	Multiple point circumference and area measurement

  OPERATING ENVIRONMENT

  Operating temperature	Insertion tube	In air: -25 °C to 100 °C (-13 °F to 212 °F); in water: 10 °C to 30 °C (50 °F to 86 °F)
  	Other parts	In air: -10 °C to 40 °C (14 °F to 104 °F) (with battery)
  		In air: 0 °C to 40 °C (32 °F to 104 °F) (with AC power adaptor and battery charge)
  Relative humidity	All parts	15 to 90%
  Liquid resistance	All parts	Operable when exposed to machine oil, light oil, or 5% saline solution
  Dust proofing and water proofing	Insertion tube	Operable under water with viewing tip adaptor attached  Not operable underwater with stereo measurement tip adaptors  IV94 series — Up to an equivalent to 3.5 m (11.5 ft) in depth  IV96 series — Up to an equivalent to 10 m (32.9 ft) in depth.
  	Other parts	IP65; not operable under water (batter and other covers must be closed)

  MIL-STD COMPLIANCE

  The operating environment performance is confirmed by the following MIL-STD-810G and MIL-STD-461G.
  No warranty is given as to damage-free under any conditions. Please ask Olympus sales representative for details.

  Type	Method
  Vibration	MIL-STD-810G、METHOD 514.7 Procedure I (General vibration test)
  Shock	MIL-STD-810G、METHOD 516.7 Procedure IV　(Transit drop test)
  Water Resistance	MIL-STD-810G、METHOD 506.6 Procedure I (Rain and blowing rain test)
  Humidity	MIL-STD-810G、METHOD 507.6 Procedure II
  Salt Fog	MIL-STD-810G、METHOD 509.6
  Sand and Dust	MIL-STD-810G、METHOD 510.6 Procedure I (Blowing dust test)
  Icing/Freezing Rain	MIL-STD-810G、METHOD 521.4
  Explosive Atmosphere	MIL-STD-810G、METHOD 511.6 Procedure I (Operation in an explosive atmosphere test)
  Electromagnetic Interference (EMI)	MIL-STD-461G、RS103 All ships above decks

  OPTICAL TIP ADAPTOR SPECIFICATIONS

  4.0 mm Viewing Tip Adaptors

  		AT80D/FF-IV94G	AT120D/NF-IV94G	AT120D/FF-IV94G	AT100S/NF-IV94G	AT100S/FF-IV94G
  Optical system	Field of view	80°	120°	120°	100°	100°
  	Direction of view	Forward			Side
  	Depth of field*1	35 to ∞ mm	2 to 200 mm	17 to ∞ mm	2 to 15 mm	8 to ∞ mm
  Distal end	Outer diameter*2	Φ4.0 mm
  	Distal end*3	19.0 mm			21.7 mm
  Oil clearing		Available			ー


  6.0 mm Viewing Tip Adaptors

  		AT40D-IV96G	AT80D/NF-IV96G	AT80D/FF-IV96G	AT120D/NF-IV96G	AT120D/FF-IV96G
  Optical system	Field of view	40°	80°	80°	120°	120°
  	Direction of view	Forward
  	Depth of field*1	200 to ∞ mm	9 to ∞ mm	35 to ∞ mm	2 to 200 mm	19 to ∞ mm
  Distal end	Outer diameter*2	Φ6.0 mm
  	Distal end*3	18.4 mm	18.9 mm	18.8 mm	18.9 mm	18.8 mm
  Oil clearing		Available



  		AT80S-IV96G	AT120S/NF-IV96G	AT120S/FF-IV96G	AT220D-IV76	AT100D/100S-IV76
  Optical system	Field of view	80°	120°	120°	220°	100°/100°
  	Direction of view	Side			Forward	Forward/Side
  	Depth of field*1	15 to ∞ mm	1 to 25 mm	3 to ∞ mm	1.6 to ∞ mm	2.0 to ∞ mm
  Distal end	Outer diameter*2	Φ6.0 mm			Φ8.4 mm	Φ6.0 mm
  	Distal end*3	24.2 mm			21.1 mm	29.5 mm
  Oil clearing		ー


  Stereo Tip Adaptors (4.0 mm and 6.0 mm)

  		AT50D/50D-IV94	AT50S/50S-IV94	AT60D/60D-IV96	AT60S/60S-IV96
  Optical system	Field of view	50°/50°		60°/60°
  	Direction of view	Forward	Side	Forward	Side
  	Depth of field*1	5 to ∞ mm	4 to ∞ mm	5 to ∞ mm	4 to ∞ mm
  Distal end	Outer diameter*2	Φ4.0 mm		Φ6.0 mm
  	Distal end*3	24.3 mm	28.4 mm	24.9 mm	31.3 mm


  *1. Indicates the viewing distance with optimal focus.
  *2. The adaptor can be inserted into a ø4.0 mm, ø6.0 mm, and ø8.4 mm hole when it is mounted on the scope.
  *3. Indicates the length of the rigid portion at the scope’s distal end when mounted.
